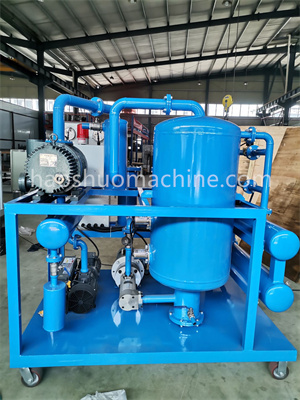

Transformer Oil Filtration Machine
Transformer Oil Filtration Machine (Oil Purifier) is designed for filtration and purification of electrical insulating oil. It can remove water contents, gases and moistures, solid contaminations, recovering the oil dielectric strength (BDV), at the same time reducing the speed of oil ageing. The machine is very effective, durable, and user-friendly transformer insulating oil equipment. It is also applied for maintain oils used in other electrical equipment, such as regulator, reactor, circuit breaker, switchgear, etc.
Description:
Transformer Oil Filtration Machine (Oil Purifier) is designed for filtration and purification of electrical insulating oil. It can remove water contents, gases and moistures, solid contaminations, recovering the oil dielectric strength (BDV), at the same time reducing the speed of oil ageing. The machine is very effective, durable, and user-friendly transformer insulating oil equipment. It is also applied for maintain oils used in other electrical equipment, such as regulator, reactor, circuit breaker, switchgear, etc.
Main Features:
Transformer Oil Filtration Machine (Oil Purifier) is designed for filtration and purification of electrical insulating oil. It can remove water contents, gases and moistures, solid contaminations, recovering the oil dielectric strength (BDV), at the same time reducing the speed of oil ageing. The machine is very effective, durable, and user-friendly transformer insulating oil equipment. It is also applied for maintain oils used in other electrical equipment, such as regulator, reactor, circuit breaker, switchgear, etc.
Main Features:
Double stages vacuum evacuation systems, high efficiency dehydration and degassing
High precision micron filters remove 99% impurities of less than one micron
Automatic interlock protection system works together to realize completely safe running
Online oil filtration for vacuum oil-filling process of electrical products
Automatic PLC controlling system realize fully automatic operation (optional)
Different treatment capacity from 600 to 18000 L/min
Achieving overall water content ≤5 PPM
Achieving soluble air and gas content ≤0.1%
Achieving breakdown voltage ≥70KV
Low watt-density less than 1.0W/cm2
Main Technical Data:
|
Item |
Unit
|
ZYA-30
|
ZYA-50
|
ZYA-100
|
ZYA-150
|
ZYA-200
|
ZYA-250
|
ZYA-300
|
|
|
Flow rate |
L/min
|
30
|
50
|
100
|
150
|
200
|
250
|
300
|
|
|
Working vacuum degree |
MPa
|
-0.08 ~ -0.099
|
|||||||
|
Working pressure |
MPa
|
≤0.3
|
|||||||
|
Temperature range |
℃
|
20 ~ 80
|
|||||||
|
Power supply |
|
380V/50HZ/3Ph 5 wire (as customer’s requirement)
|
|||||||
|
Working noise |
dB
|
70
|
70
|
70
|
75
|
75
|
75
|
75
|
|
|
Heating power |
KW
|
28
|
30
|
45
|
60
|
75
|
90
|
120
|
|
|
Total power |
KW
|
35.5
|
37.5
|
52.5
|
71.4
|
86.5
|
102.5
|
135
|
|
|
Outlet(inlet) caliber |
mm
|
φ25
|
φ32
|
φ42
|
φ50
|
φ50
|
φ60
|
φ60
|
|
|
Weight |
Kg
|
600
|
800
|
1050
|
1400
|
1800
|
2000
|
2200
|
|
|
Size |
L |
mm
|
1500
|
1600
|
1800
|
1900
|
2000
|
2100
|
2200
|
|
W |
mm
|
800
|
850
|
1100
|
1150
|
1200
|
1200
|
1200
|
|
|
H |
mm
|
1600
|
1700
|
1900
|
2000
|
2100
|
2200
|
2300
|
|
