Down Pipe Forming Machine

Description

This down pipe forming machine is used in manufacturing rectangle or round down pipe with close entrance, and its specific dimension is made at customers' requirements. The main components of this device are decoiler, roll former, cutting device, control cabinet, and pipe bending machine, etc.
The machine is designed logically and possesses high quality forming. Controlled by PLC, this down pipe forming machine is quite convenient to operate.
The processing flow of this machine is as follows: decoiling—guiding—forming—cutting—pipe bending

Properties

This machine adopts automatic PLC control and touch screen operation. And it has high speed forming process and makes little noise. The equipment adopts welded frame of high intensity. After fine finish, forming rollers get heat treatment before chromeplate. So this equipment has features of stable performance and long service life.

Operation and Points That Need Attention

The down pipe forming machine is totally automatically controlled by PLC. Therefore, only by inputting related production data, such as number of products, length and punching dimension, users can start this machine to do manufacturing. If users want to adjust this machine or something else, they have to stop the machine first and then carry out relevant operation.

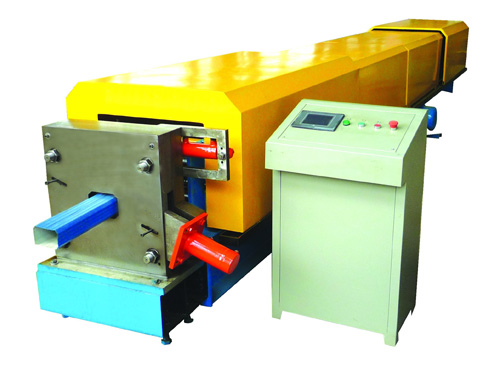

Down Pipe Forming Machine

Maintenance and Lubrication

Users should regularly do lubrication for chains of chainwheel, bearings and speed reducer, etc. And the forming rollers should be kept clean.

Transportation and Packing

This kind of machine should adopt sea shipping by container and nude packing.

Parameters of the Machine

1. Suitable material: coating rolled steel, etc.
2. Suitable thickness: 0.4-1mm
3. Forming specifications: according to customers' demands
4. Forming speed: 10-15m/min
5. Main motor power: 5.5-7.5Kw (depending on specific requirements of users)
6. Cutting mode: pneumatic flying saw tracking cutting
7. Control system: PLC systems from Mitsubishi and Panasonic products, electrical appliances of famous brands
8. Optional accessories: hydraulic uncoiler, etc

As a professional manufacturer and supplier of down pipe forming machine, based in China, Wuxi Haoshuo Technology Co., Ltd mainly offers cold rolling mill, roll forming machine (guardrail forming machine, gutter forming machine, etc), sandwich panel forming machine (EPS panel forming machine, PU panel forming machine), slitting line, cut to length line, radiator production line, auto-stacker, and hydraulic decoiler, etc. Located in Jiangsu Province, an hour drive from Shanghai City in China, we enjoy quite convenient transportation and can provide excellent service. We offer installation and debugging services of our devices and staff training for factories abroad and OEM service. For more guides of down pipe forming machine, please contact us.
