Home » Products » Roll Forming Machine » Ridge Cap Forming Machine

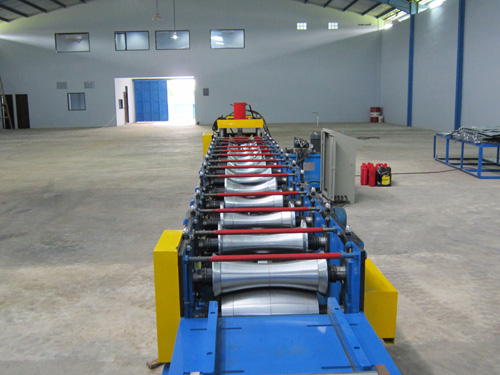

Ridge Cap Forming Machine

Description

According to customers' specific demands, we design and manufacture ridge cap forming machines with different specifications. This machine mainly includes decoiler, roll former, cutter, hydraulic pump station, product stable, and control cabinet, etc.

Properties

The frame of the ridge cap forming machine adopts formed steel construction and after welded, this machine utilizes integrity processing technology. It enjoys rational and beautiful structure, strong carrying ability, and stable and reliable performance. The forming roller of this machine is designed by professional technicists. The machine undergoes high precision processing and heat treatment before chromeplate. So this machine is characterized by high forming precision and long service life. The main components of this device are from products of famous brands, thus ensuring the whole performance and quality.

Controlled by PLC, this machine is easy to operate, thus workers without special training can operate it very well. This equipment is convenient to debug, and enjoys low noise and high efficiency.


Ridge Cap Forming Machine

Operation and Points That Need Attention

The ridge cap forming machine is totally controlled by PLC. So only by inputting related production data such as number of products, length and punching dimension, users can start this machine to proceed manufacturing. If users want to adjust this machine or something else, they have to stop the machine first and carry out relevant operation.

Maintenance and Lubrication

Users should regularly add lubricant oil to chains of chainwheel, bearings and speed reducer, etc. And the forming rollers should be kept clean.

Transportation and Packing

This kind of machine should adopt nude packaging and container transport.

Parameters of the Machine

Suitable material: galvanized coils and colored steel coils, etc.
Suitable thickness: 0.3-0.8mm
Forming specifications: depending on specific requirements of customers
Forming speed: 10-15m/min
Main motor power: 3-5.5Kw (depending on specific requirements of users)
Hydraulic punching: no wastes cutting in hydraulic station
Hydraulic station power: 3Kw (depending on specific requirements of users)
Control system: PLC systems from Mitsubishi and Panasonic products, electrical appliances of famous brands

As a professional manufacturer and supplier of ridge cap forming machine, based in China, Wuxi Haoshuo Technology Co., Ltd mainly offers cold rolling mill, roll forming machine (such as rack forming machine, door frame forming machine, etc), sandwich panel forming machine (EPS panel forming machine, PU panel forming machine), slitting line, cut to length line, radiator production line, curving machine, and hydraulic decoiler, etc. Located in Jiangsu Province, an hour drive from Shanghai City in China, we enjoy quite convenient transportation and can provide excellent service. We offer installation and debugging services of our devices and staff training for factories abroad and OEM service. For more guides of ridge cap forming machine, please contact us.
