Wall Panel Forming Machine

Description

This wall panel forming machine is suitable for manufacturing colored steel wall panel. Its main components are decoiler, roll former, cutter, hydraulic pump station, product stable, and control cabinet, etc. The normal material thickness is roll coating with 0.3-0.8mm, and its forming width is equal to or less than 1250mm.
The specific wall panel profile can be designed and made in line with customers' specific requirements.

Properties

This machine is fully automatically controlled by PLC, and operated by touch screen. And it has high speed forming process and makes little noise. The equipment adopts welded frame of high strength. After fine finish, forming rollers get heat treatment before chromeplate. So this equipment has features of stable performance and long service life.

Operation and Points That Need Attention

The wall panel forming machine is totally controlled by PLC. Therefore, only by inputting related production data, such as number of products, length and punching dimension, users can start this machine to do manufacturing.

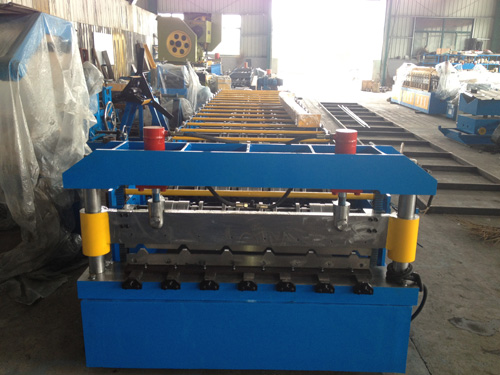

Wall Panel Forming Machine

If users want to adjust this machine or something else, they have to stop the machine first and then carry out relevant operation.

Maintenance and Lubrication

Users have to regularly do lubrication for chains of chainwheel, bearings and speed reducer, etc. And the forming rollers should be kept clean.

Transportation and Packaging

This kind of machine should adopt sea shipping by container and nude packing.

Parameters of the Machine

1. Suitable material: coating rolled steel, galvanized sheet, etc.
2. Suitable thickness: 0.3-0.8mm or more
3. Forming specifications: depending on specific requirements of customers
4. Forming speed: 12-15m/min
5. Main motor power: 5.5Kw (depending on specific requirements of users)
6. Cutting mode: hydraulic cutting
7. Hydraulic station power: 3Kw (depending on specific requirements of users)
8. Control system: PLC systems from Mitsubishi and Panasonic products, electrical appliances of famous brands
9. Optional accessories: hydraulic uncoiler

As a professional manufacturer and supplier of wall panel forming machine, based in China, Wuxi Haoshuo Technology Co., Ltd mainly offers cold rolling mill, roll forming machine, sandwich panel forming machine, slitting line, cut to length line, radiator production line, and accessory components and devices, such as auto-stacker, hydraulic decoiler, etc. Located in Jiangsu Province, an hour drive from Shanghai City in China, we enjoy quite convenient transportation and can provide excellent service. We offer installation and debugging services of our devices and staff training for factories abroad and OEM service. For more guides of wall panel forming machine, please contact us.
